Edit a Diagram

To add new elements to the diagram, click an item from the left-hand sidebar and then click on the canvas where you want to place it (drag and drop). The color of the elements is pre-defined and cannot be altered.

To modify a specific element on the canvas, click the element itself. A window displaying the available tools will open on the right side of the element.

Additionally, when the side panel is enabled, it displays the details of the clicked element.

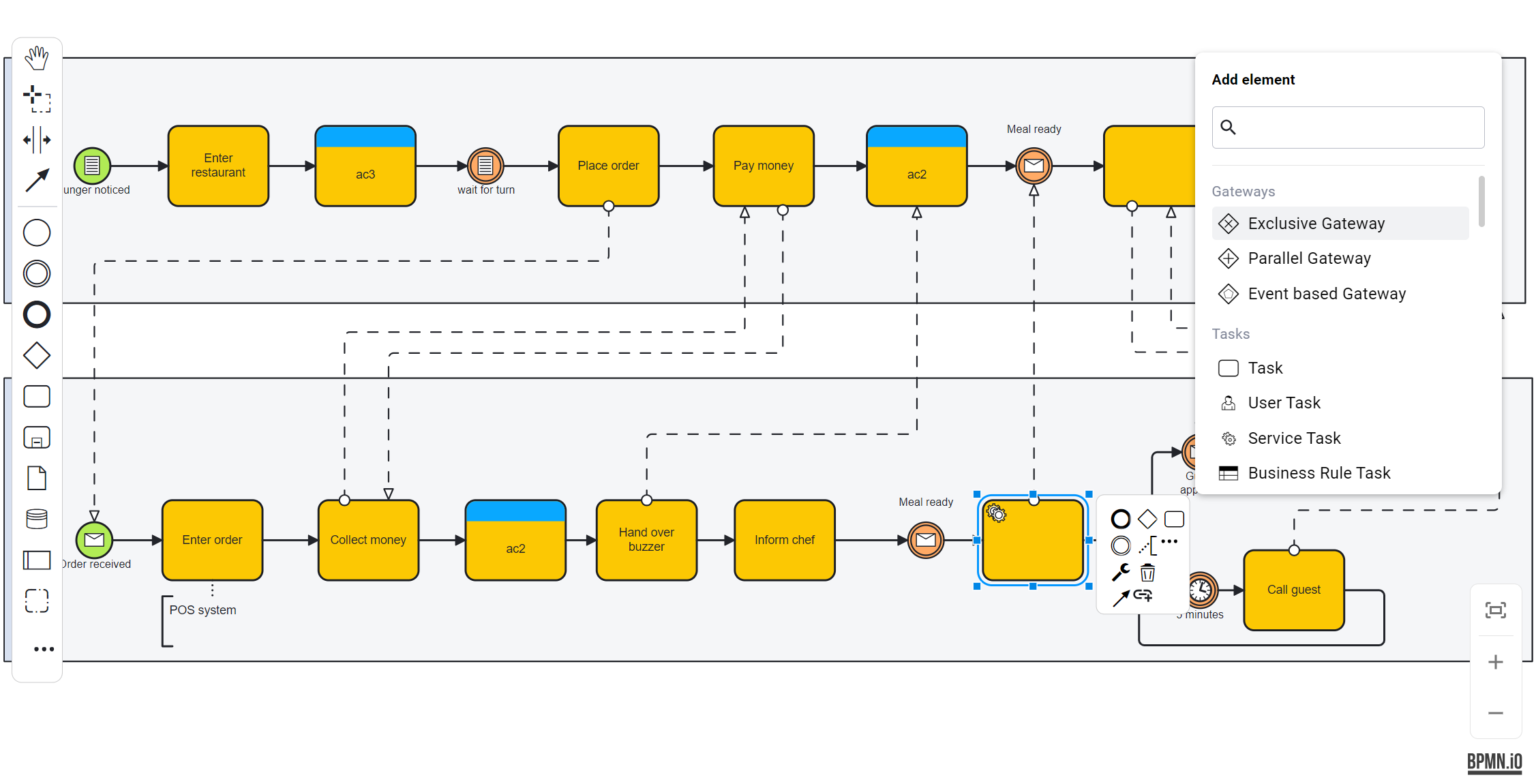

To access additional options, click the three dots inside the toolbox. Select an element from the list or use the search box to find items from the list.

To give a title/description to an element or to edit it, there are two methods available:

• Double-click directly on the element on the canvas and type in the text.

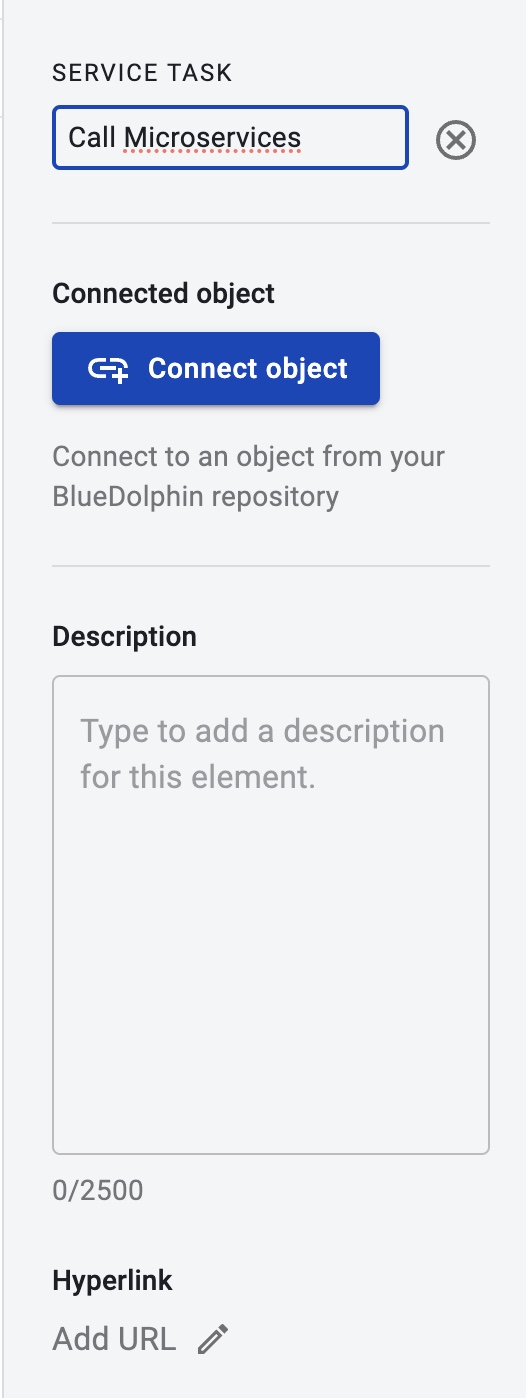

• From the side panel: you can add the title, description or a hyperlink to the element using the side panel. You can connect the object to the element. Refer Connect to the Object section.

When working on a BPMN diagram, BlueDolphin ensures that all the names of connected objects in the diagram are always in sync with the repository.

When you open a diagram and if there are object names to be synced, you will see a notification. Additionally, if the diagram is already open, modifying the diagram—such as moving elements, adding, or removing elements—can also trigger the notification.
