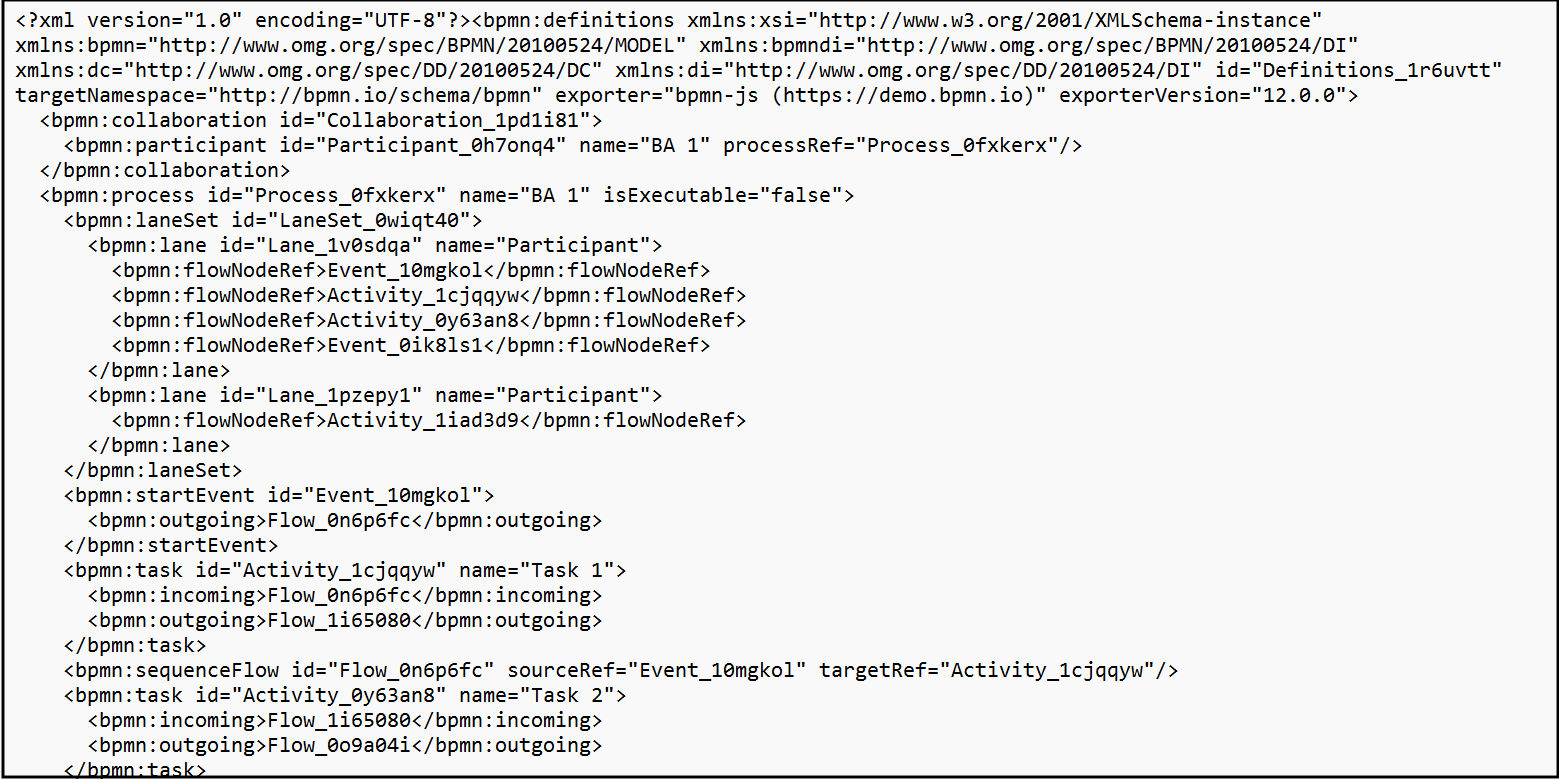

The module allows you to import a BPMN file into BlueDolphin. Only BPMN 2.0 standard XML format files can be imported. A file name must be unique and not already used for that tenant.
- To start the process, go to the Diagrams tab.
- Click the Import BPMN file button located in the bottom-right corner.
- Select the desired file using the file picker.
After a successful import, the following message is displayed:
Click Go to diagram option from the notification to open the diagram directly from the message box.
The diagram name from an imported file takes the name from the file.
Note: If a diagram with the same name as the one you are trying to import already exists in the tenant, the import will not be successful. An error messages appears as,
You have to rename the diagram first and then import the BPMN file.
