View Diagrams Linked to a Process

This page allows you to view all the BPMN diagrams connected with a specific process. From this page, you can create your first diagram, publish it, open it in the editor to make changes or choose to delete it.

There are two ways to open the BPMN diagram from the Process Browser tab,

• Click the process title in the list.
• Click the arrow next to a specific process in the list to open it in the same tab.

When you open a process, the Process Details page is displayed. This is what the initial page looks like before any process is published.

In this page, the Diagrams section shows all BPMN diagrams, including information like diagram owner and last edited details.

Create BPMN diagram button lets you create a diagram directly from a business process, automatically connecting the object to the diagram.

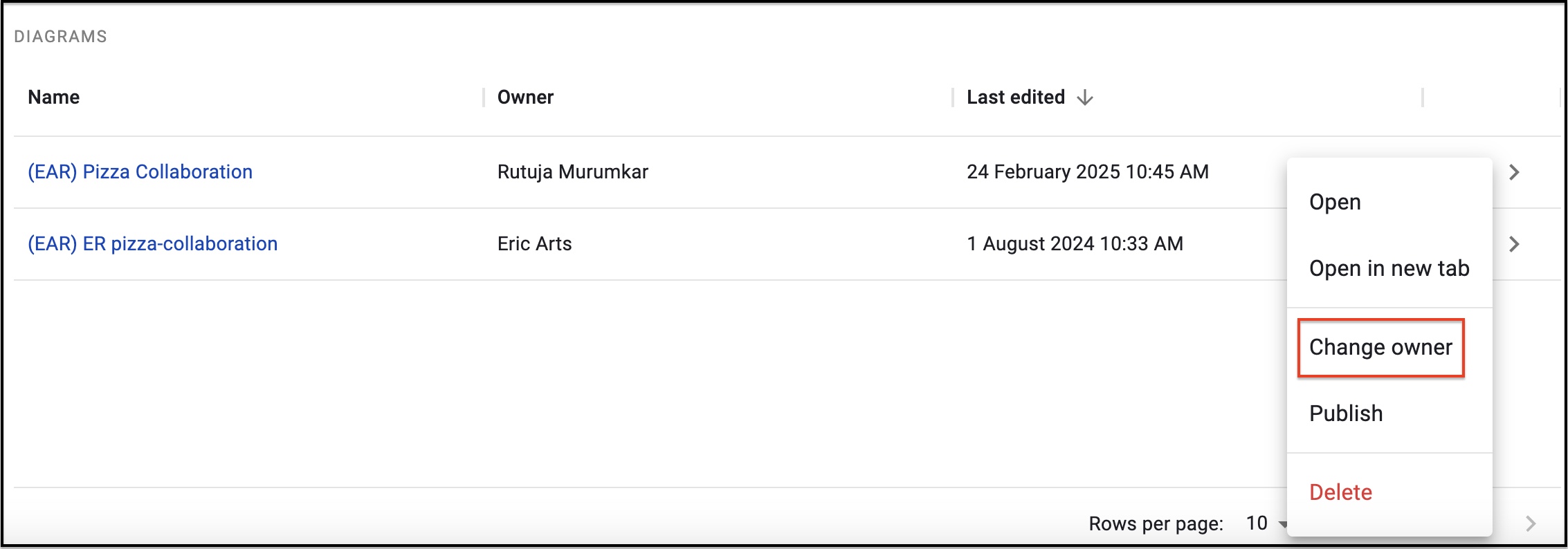

To open a BPMN diagram in the editor mode, click three dots next to the diagram name and choose to open it in the same tab or a new tab. If you are not the owner, then the diagram opens in the read-only mode.

View Published Diagram

Once you publish the diagram, the published process appears on the process details page.

Button	Description
	Opens the connected business process object in a new Objects tab, where you can view the object information.
	Open the published process in read-only mode. Connected objects are navigational in this mode.
	Displays the published process in full-screen.
Published by	Diagram Owner name
Published on	Date and time NOTE: The date/time stamp for created, last edited, and published is localized to the user.
Published from	Opens diagram in the editor mode (if you are the owner).
