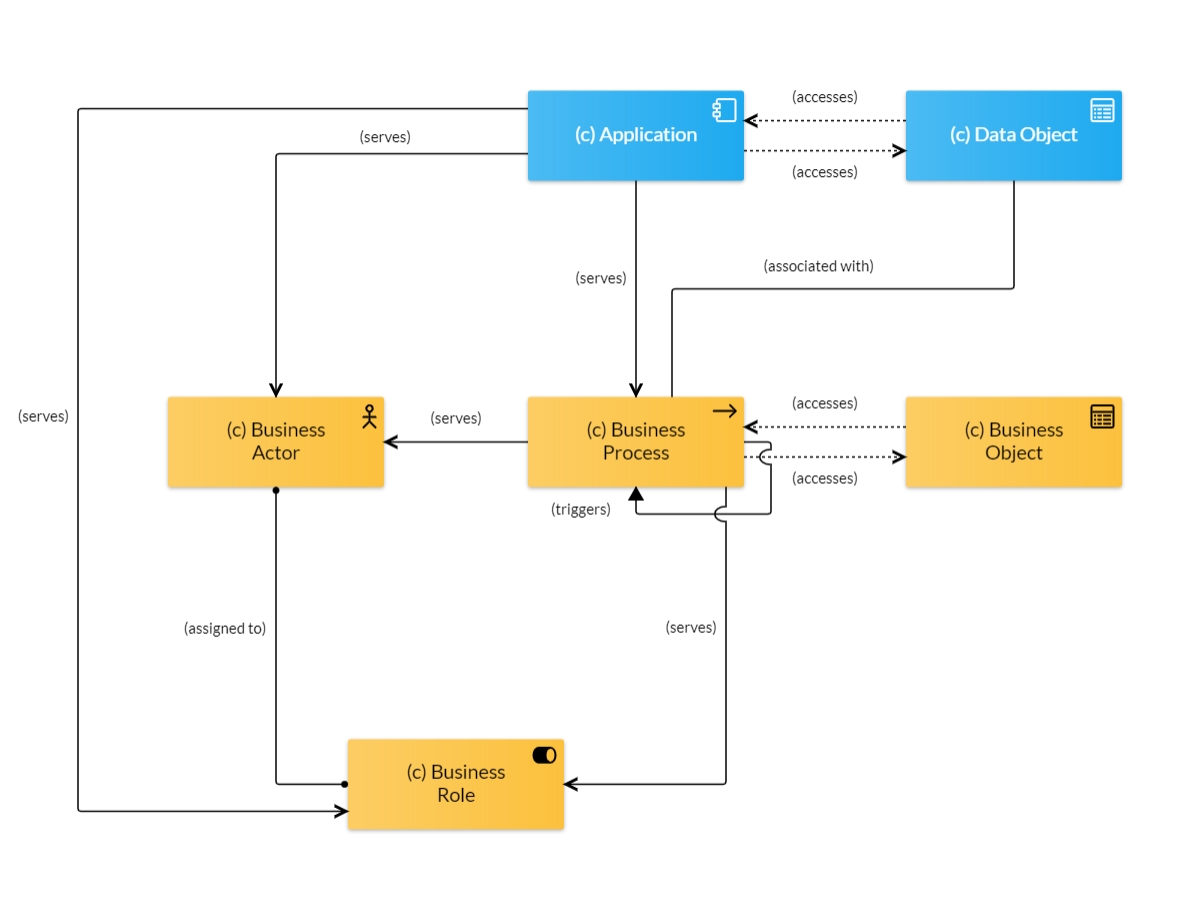

This is the ArchiMate version of the metamodel supported for Processes. Relationships highlighted in green are the entities supported in the Processes module.
| NOTE: |
Make sure the relationships are enabled in your BlueDolphin tenant before you publish the process. |
| Connected object(s) | Relationship Type | Relationship(s) |
| Application Component to a task type (task, user task, service task, send task, receive task, manual task, business rule task, script task) | serving | Application Component serves Business Process |
| Business Actor to a pool or a lane | serving |
Business Process serves Business Actor |
| Application Component serves Business Actor (when the application component is connected to a task type in the lane) |
||
| Business Role to a pool or a lane | serving |
Business Process serves Business Role |
| Application Component serves Business Role (when the application component is connected to a task type in the lane) |
||
| Business Actor to a pool and Business Role to a lane* | assignment | Business Actor assigned to Business Role |
| Business Process to a call activity | triggering | Business Process triggers Business Process |
| Business Object to a data object | access | Business Process accesses Business Object or Business Object accesses Business Process (depending on the direction when the data object has a data input/output association with a task type) |
| Data Object to a data store | access | Business Process accesses Data Object or Data Object accesses Business Process (depending on the direction when the data store has a data input/output association with an application component connected to a task type) |
| association | Business Process associated with Data Object (when the data store has a data input/output association with an application component connected to a task type) |
|
| * If you use Business Actors and Business Roles, we recommend that you connect Business Actor to the pool and Business Role to a lane |
||
No relationship(s) supported for these scenarios:
- Business Actor to a pool and a lane
- Business Role to a pool and a lane
